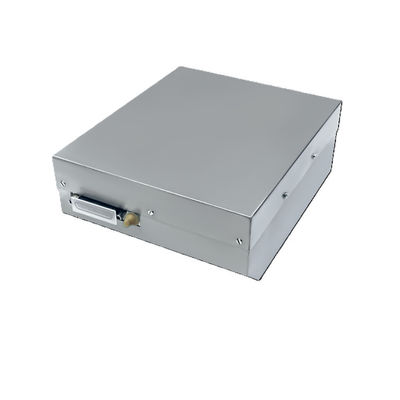

Dubhe-90 Spacecraft Sagnac Ring Laser Gyroscope for INS

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	1000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Shendu Navigation

Model Number

RLG（Dubhe-90）

Performance\Bias Stability (1σ):

0.004°/h~0.002°/h

Performance\Zero Bias Repeatability (1σ):

0.002°/h~0.001°/h

Performance\ARW（Angular Random Walk(1σ):

0.0007°/√hr~0.0004°/√hr

Performance\Scale Factor Error (1σ):

≤2ppm

Performance\Dynamic Range:

≥±400°/s

Performance\Bandwidth:

＞200Hz

Electrical Interface\Turn On Time:

Electrical Interface\Output Signal Format:

Electrical Interface\Built In Self-test:

Electrical Interface\Output Signal Update Rate:

Electrical Interface\Output Signal Baud Rate:

115200

Electrical Interface\Vibration Shock:

75g, Half Sine, 6ms

Electrical Interface\Operating Temperature:

- 40℃ ~ + 70℃

Electrical Interface\Storage Temperature:

- 55℃ ~ + 85℃

Physical Specifications\Power Supply:

±15V,±5V

Physical Specifications\Connector (25 Pins):

J30JM-37ZKP36

Physical Specifications\Power Consumption:

Physical Specifications\MTBF (per MIL-HDBK-217-F):

＞10000hr

Physical Specifications\Weight:

Physical Specifications\Dimensions:

151mm×126mm×57mm

Product Description

RLG (Dubhe-90)

The Ring Laser Gyroscope (RLG) operates based on the Sagnac effect, measuring angular increments by detecting the phase difference between counter-propagating laser beams within a closed glass cavity.

With high integration, exceptional reliability, strong environmental adaptability, and stable performance, the Dubhe-90 RLG is widely used in high-precision inertial navigation systems (INS).

Applications

The Dubhe-90 RLG is suitable for navigation and attitude reference in:

Spacecraft
Aircraft
Satellites
Vehicles
Ships
Submersibles

Key Features

Monolithic optical and electronic packaging, enabling easy installation
Compact and lightweight design with controlled power consumption
High reliability with strong resistance to shock and vibration
Wide dynamic response bandwidth with digital output

Series		RLG Series
Type		Dubhe-90
Performance	Bias stability (1σ)	0.004°/h~0.002°/h
	Zero bias repeatability (1σ)	0.002°/h~0.001°/h
	ARW(Angular random walk(1σ)	0.0007°/√hr~0.0004°/√hr
	Scale factor error (1σ)	≤2ppm
	Dynamic Range	≥±400°/s
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	＜5s
	Output signal format	TTL
	Built in self-test	yes
	Output signal update rate	1Hz
	Output signal baud rate	115200
	Vibration shock	75g, half sine, 6ms
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	±15V,±5V
	Connector (25 pins)	J30JM-37ZKP36
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞10000hr
	Weight	2kg
	Dimensions	151mm×126mm×57mm
