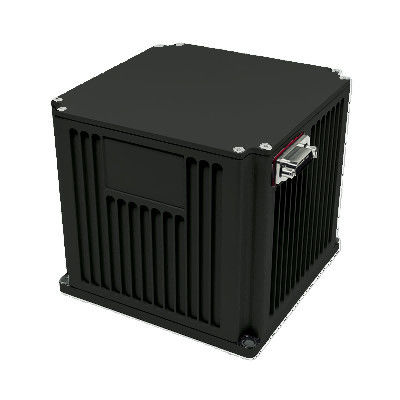

Merak-A03 – GNSS Strapdown Aircraft Inertial Navigation System (FOG INS)
  • name

Merak-A03 – GNSS Strapdown Aircraft Inertial Navigation System (FOG INS)

MOQ: 1 set
Price: $1000-$100000
Delivery Period: 30 work days
Payment Method: T/T
Supply Capacity: 500 sets per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Wuhan Deep Pilot Technology Co.,Ltd.
Model Number
Merak-A03
Alignment Time:
≤5min
Position Accuracy/Pure Inertia:
≤4nm/1h,CEP
Position Accuracy/INS/GNSS Combination:
Better Than GNSS
Speed ​​accuracy/Pure Inertia:
≤3.0m/s,RMS
Speed ​​accuracy/INS/GNSS Combination:
≤0.2m/s,RMS
Heading Accuracy/Pure Inertia:
≤0.2°sec(L),RMS
Heading Accuracy/INS/GNSS Combination:
≤0.1°,RMS
Pitch & Roll Accuracy/Pure Inertia:
≤0.05°,RMS
Pitch & Roll Accuracy/INS/GNSS Combination:
≤0.03°,RMS
Dimensions:
110×110×100mm
Weight:
＜1.7kg
Temperature:
-40℃~60℃
Input Voltage:
DC24V(±25%)
Product Description

The Merak-A03 is a high-performance aircraft inertial navigation system (INS) designed for UAVs and aerospace applications. It uses FOG/RLG gyroscopes and quartz accelerometers in a strapdown configuration to deliver accurate, real-time navigation solutions.

Equipped with an advanced real-time data fusion center, the system integrates inertial measurements with GNSS, celestial navigation, and other data sources, supporting both pure inertial and multi-source navigation modes.

Key Advantages for UAV and Aircraft Applications

  • Reliable ground and air alignment for precise navigation initialization

  • Multiple alignment mode selection to meet operational requirements

  • Scalable navigation augmentation to integrate additional sensors or data sources

  • Continuous system monitoring for real-time fault detection and operational reliability

The Merak-A03 FOG INS provides highly accurate, real-time navigation data, making it suitable for UAVs, special aircraft, and aerospace navigation applications.

 Series Aerospace Inertial Navigation System(INS-A)
Type Merak-A03
Accelerometer Months Bias Repeatability(1σ) ≤50μg
Months Scale Factor Accuracy(1σ) ≤50ppm
Gyro Bias Repeatability(1σ) ≤0.02°/hr
Scale Factor Accuracy(1σ) ≤50ppm
Random walk(1σ) ≤0.01°/√hr
Features Position Accuracy Pure inertia ≤4nm/1h,CEP
INS/GNSS combination better than GNSS
Speed Accuracy Pure inertia ≤3.0m/s,RMS
INS/GNSS combination ≤0.2m/s,RMS
Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜5min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.2°sec(L),RMS
INS/GNSS combination ≤0.1°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.05°,RMS
INS/GNSS combination ≤0.03°,RMS
Characteristics Power consumption ＜15W
Dimensions 110×110×100
Weight ＜1.7kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours
