Merak-IMU01 Customized Strapdown Gyroscope IMU | High-Precision Inertial Measurement System Units
  • name
  • name
  • name
  • name

Merak-IMU01 Customized Strapdown Gyroscope IMU | High-Precision Inertial Measurement System Units

MOQ: 1 set
Price: $1000-$100000
Delivery Period: 30 work days
Supply Capacity: 500 sets per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Wuhan Deep Pilot Technology Co.,Ltd.
Model Number
Merak-IMU01
Gyro\Bias Stability (10s):
0.3°/h
Gyro\Zero Bias Stability At Variable Temperature (100s):
0.5°/h
Gyro\Scale Factor Nonlinearity:
≤20ppm
Gyro\Random Walk Coefficient:
0.02°/½h
Gyro\Input Range:
400°/s
Accelerometer\Zero Bias Repeatability:
0.3mg
Accelerometer\Bias Temperature Sensitivity:
50μg/℃
Accelerometer\Scale Factor Repeatability:
300ppm
Accelerometer\Scale Factor Temperature Sensitivity:
20ppm/℃
Accelerometer\Input:
±20g
Features\Operating Temperature:
-40℃～60℃
Features\Storage Temperature:
-45℃～70℃
Features\Power Supply:
18～36V（DC）
Features\Stable Power Consumption:
≤8W
Features\Mounting Hole Diameter:
4-Φ4.5mm
Features\Dimensions(mm):
70.3*70.3*53
Features\Weight:
≤500g
Product Description

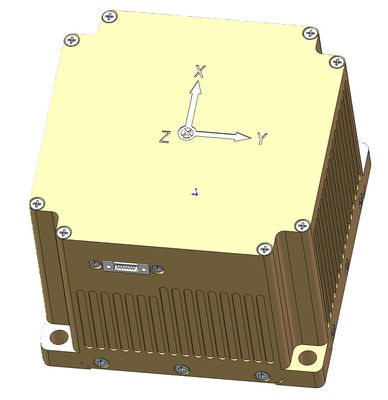

The Merak-IMU01 Inertial Measurement Unit (IMU) features a strapdown architecture using optical gyroscopes and accelerometers. After applying calibration compensations, it delivers formatted real-time data streams, ensuring precise angular and linear rate measurements for a variety of platforms.

Deployment Scenarios:

  • Guided munitions and missile systems

  • Stabilized platforms for military and aerospace applications

  • Precision navigation and motion control systems

Design Highlights:

  1. Adjustable accuracy and stability balance for diverse applications

  2. Failure-resistant, ruggedized construction

  3. Rapid initialization for immediate operational readiness

  4. Clean digital signal path for high-fidelity data output

  5. Extended mean time between failures for long-term reliability

Keywords: Merak-IMU01, customized strapdown IMU, gyroscope inertial measurement unit, high-precision optical gyro IMU, missile guidance IMU, stabilized platform IMU, real-time motion data, strapdown inertial system, aerospace and military IMU

Model
Merak-IMU01
Item indicator Description Parameter
Gyro Zero bias Bias stability (10s) 0.3°/h
Zero bias stability at variable temperature (100s) 0.5°/h
Scaling Factor Scale factor nonlinearity ≤20ppm
Other indicators Random walk coefficient 0.02°/½h
Input range 400°/s
Accelerometer Deviation Zero bias repeatability 0.3mg
Zero bias Bias temperature sensitivity 50μg/℃
Scaling Factor Scale factor repeatability 300ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicators Input range ±20g
Features Environmental performance Operating temperature  -40℃～60℃
Storage temperature  -45℃～70℃
General Requirements Power supply 18～36V(DC)
Stable power consumption ≤8W
Mounting hole diameter 4-Φ4.5mm
Dimensions(mm) 70.3*70.3*53
Weight ≤500g
