Merak-IMU05 ODM Aerospace Inertial Measurement Units Imus Sensor Motion Sensitive

Products

Fiber Optic Inertial Navigation System

Aircraft Inertial Navigation System

Marine Inertial Navigation System

Automotive Inertial Navigation System

Merak-IMU05 ODM Aerospace Inertial Measurement Units Imus Sensor Motion Sensitive

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Merak-IMU05

Gyro\Bias Stability (10s):

0.01°/h

Gyro\Zero Bias Stability At Variable Temperature (100s):

0.05°/h

Gyro\Scale Factor Nonlinearity:

≤20ppm

Gyro\Random Walk Coefficient:

0.001°/½h

Gyro\Input Range:

400°/s

Accelerometer\Zero Bias Repeatability:

Accelerometer\Bias Temperature Sensitivity:

20μg/℃

Accelerometer\Scale Factor Repeatability:

20ppm

Accelerometer\Scale Factor Temperature Sensitivity:

20ppm/℃

Accelerometer\Input:

Features\Operating Temperature:

-40℃～60℃

Features\Storage Temperature:

-45℃～70℃

Features\Power Supply:

18～36V（DC）

Features\Stable Power Consumption:

Features\Mounting Hole Diameter:

4-Φ5.3mm

Features\Dimensions(mm):

130*130*110

Features\Weight:

≤2200g

Product Description

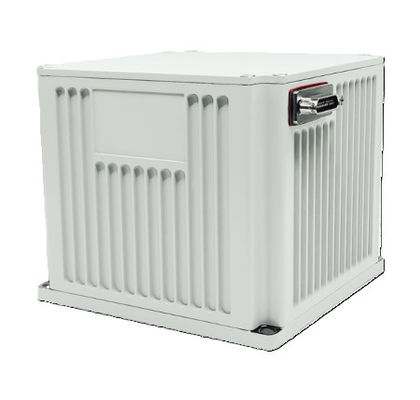

IMU (Merak-IMU05)

Our optical IMU solution combines inertial sensors with advanced strapdown algorithms, providing compensated, real-time motion data through standardized interfaces. Ideal for: • Aerospace systems • Stabilized platforms • Motion-sensitive applications.

Key benefits:

1) Configurable high-accuracy design;

2) No mechanical wear components;

3) Plug-and-play digital operation;

4) Efficient noise/power performance;

5) Maintenance-free durability.

Model			Merak-IMU05
Item	indicator	Description	Parameter
Gyro	Zero bias	Bias stability (10s)	0.01°/h
	Zero bias	Zero bias stability at variable temperature (100s)	0.05°/h
	Scaling Factor	Scale factor nonlinearity	≤20ppm
	Other indicators	Random walk coefficient	0.001°/½h
	Other indicators	Input range	400°/s
Accelerometer	Deviation	Zero bias repeatability	20μg
	Zero bias	Bias temperature sensitivity	20μg/℃
	Scaling Factor	Scale factor repeatability	20ppm
	Scaling Factor	Scale factor temperature sensitivity	20ppm/℃
	Range indicators	Input range	±20g
Features	Environmental performance	Operating temperature	-40℃～60℃
	Environmental performance	Storage temperature	-45℃～70℃
	General Requirements	Power supply	18～36V(DC)
		Stable power consumption	≤16W
		Mounting hole diameter	4-Φ5.3mm
		Dimensions(mm)	130130110
		Weight	≤2200g
