Portable Unmanned Underwater Vehicle (UUV) | Lightweight Autonomous and Remote-Controlled Submersible

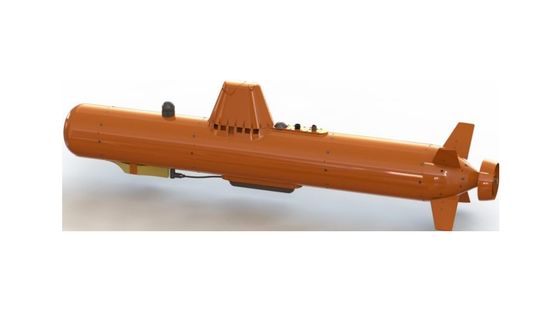

The Portable Unmanned Underwater Vehicle (UUV) is a miniaturized, lightweight submersible designed for underwater terrain detection, hydrological data collection, and target observation. Requiring only 1–2 operators for deployment and recovery, it can be quickly launched in diverse water environments with minimal supporting equipment. The UUV supports multiple mission payloads, including detection and communication devices, and operates in both autonomous and remote-controlled modes with simple, user-friendly operation.

Main Functions:

• Remote and autonomous navigation: Surface remote control and underwater autonomous navigation

• Directional and waypoint navigation: Surface left-right turning, automatic waypoint seeking

• Underwater navigation modes: Depth-fixed, height-fixed, directional, default preset missions, and autonomous mission-set navigation

• Communication capabilities: Video transmission, Beidou short messaging, and underwater acoustic communication

• Detection and imaging: Side-scan sonar detection and imaging, integrated underwater lighting, and high-definition video recording

• Safety and protection: Autonomous recovery, excessive depth protection, endurance limits, low seabed clearance protection, out-of-area protection, and autonomous surfacing

Included Equipment:

• 1 UUV vehicle

• 1 control console

• 1 vehicle bracket

• 1 airtight tooling

• 1 charger

• Maintenance tools set

• Packaging box

Technical Parameters – Vehicle:

• Length: < 1600 mm

• Diameter: 198 ± 1 mm

• Net Weight: < 50 kg

• Maximum Diving Depth: ≥ 110 m

• Navigation Speed: up to 7 knots

• Endurance: > 8 hours at 3 knots cruising speed

• Propeller: 5-blade, high-efficiency, low-noise

• Steering Mode: X-shaped rear steering

• Control Mode: Remote control / Autonomous navigation

• Navigation & Positioning: GPS (surface), DVL + Magnetic Compass (underwater)

• Positioning Accuracy: <10 m CEP (surface), ≤5% × voyage distance (underwater)

• Directional Accuracy: <1°; Depth-Fixing Accuracy: <0.2 m

• Communication Range: Video / Beidou > 2.5 km, Acoustic > 1000 m

• Standard Payloads: Side-scan sonar, lighting, and video recording system

Technical Parameters – Control Console:

• Dimensions: 495 × 300 × 247 mm

• Weight: < 15 kg

• Endurance: > 8 hours

• Displayed Status: Heading, attitude, speed, depth, seabed clearance, GPS coordinates, payload and motor status, battery information, navigation status
