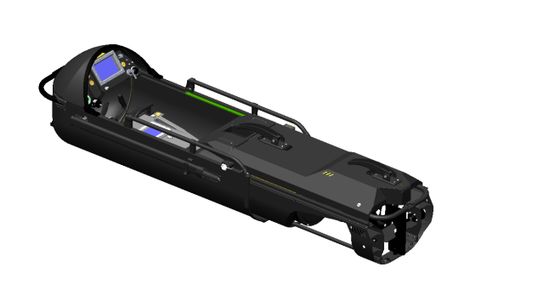

UPV-3D Diver Carrier (Navigation Version）
  • name
  • name

UPV-3D Diver Carrier (Navigation Version）

Detail Information
Product Description
Detail Information
Product Description

Introduction

The navigation version of the UPV-3D Diver Carrier is upgraded from the basic version by integrating an underwater integrated navigation device, enabling precise underwater path navigation. When the carrier is used in conjunction with the underwater integrated navigation device, the navigation device connects to the carrier’s display instrument via a watertight cable. It transmits real-time position and speed data to the display instrument, presenting accurate underwater paths and position information. When the carrier is in shallow water areas where GPS signals are receivable via the antenna, the underwater integrated navigation device updates and displays position information in real time and re-plans the path.

The underwater integrated navigation device, which is used with the carrier, can also be used independently by divers in handheld mode. After the carrier reaches or approaches the underwater target, divers can detach the underwater integrated navigation device from the carrier and use it as a handheld tool. It provides path guidance for divers to perform underwater operations at designated locations and to locate the carrier after completing the operations

Item

Specification

Operating Environment

Sea state ≤ Level 3

Deployed Length of Carrier

2200mm

Retracted Storage Length of Carrier

1400mm

Diameter

Envelope circle diameter ≤ 600mm

Weight

≤ 85kg

Positive Buoyancy

< 2kg

Maximum Speed

4 knots (single diver) / 3 knots (two divers)

Maximum Diving Depth

25m

Voyage Range

≥ 12km (test condition: speed of 2 knots, single diver)

Minimum Endurance

4h

Load Capacity

2 divers plus their personal equipment

Cargo Compartment Volume (after deployment)

> 60L

Heading Control

Cross rudder, man-machine control mechanism

Navigation Configuration

Deployable GPS navigation;Electronic magnetic compass;Mechanical magnetic compass

Displayed Information

Depth gauge indication;Battery level display;Depth display;Speed gear display;Operating time display;Heading and heading correction prompt;

Safety Measures

Diver-carrier separation protection;Low battery alarm;Excessive depth alarm;

Modes

Combat mode, storage/transport mode;Quick switching between modes

Deployment Capability

Capable of deployment at sea, via air media, and on beaches

Operating Ambient Temperature

-2～50℃

Storage and Transport Temperature

-20～50℃

Main Shell Material

Aluminum alloy

Main Tactical and Technical Indicators of the Underwater Integrated Navigation Device

Item

Specification

Weight

In air: ≤ 15kg; In water: ≤ 0.5kg (fresh water, positive buoyancy)

Maximum Operating Depth

40m

Supply Voltage

24V ± 0.5V

Operating Time

≥ 4h

Peak Power

Approximately 80W

Data Interface

RS485

Heading Accuracy

≤ 1° (1σ)

Attitude Angle Accuracy

≤ 0.2°

Navigation Accuracy

Surface: ≤ 25m (CEP);Underwater: ≤ 5% (1σ, using MEMS inertial navigation module)

DVL (Doppler Velocity Log)

Minimum bottom detection depth: ≤ 2m;Maximum bottom-tracking depth: 80m;Speed Measurement Accuracy: ≤ ±0.5%V (flow velocity) ± 0.005m/s

Storage and Transport Temperature

-40℃ ～ +60℃
