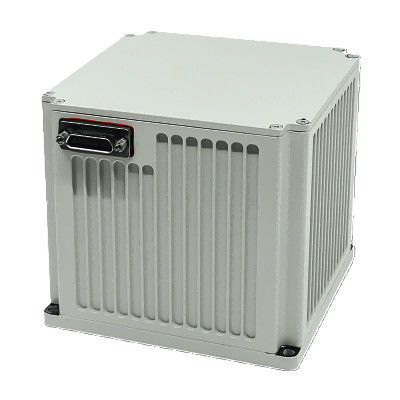

Merak-M1 FOG INS System Solutions | Maritime FOG Inertial Navigation System

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	100 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Merak-M1

Alignment Time:

≤15min

Position Accuracy/Pure Inertia:

≤1nm/1h,CEP

Position Accuracy/Inertia/DVL Combination:

≤0.3%D,RMS

Position Accuracy/Inertia/GNSS Combination:

Better Than GNSS

Speed Accuracy/Pure Inertia:

≤1.2kn,RMS

Speed Accuracy/GNSS Combination:

≤0.4kn,RMS

Heading Accuracy/Pure Inertia:

≤0.05°sec(L),RMS

Heading Accuracy/INS/GNSS Combination:

≤0.02°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.01°,RMS

Dimensions(Lmm×Wmm×Hmm):

161×153×123mm

Weight:

3.5kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Product Description

The Merak-M1 Marine FOG Inertial Navigation System (INS) delivers high-precision navigation for a wide range of maritime vessels. Using RLG/FOG gyroscopes and quartz accelerometers in a robust strapdown configuration, the system provides real-time navigation solutions through a high-speed processor.

The Merak-M1 supports multiple operation modes, including inertial-only, GNSS-assisted, and velocity-aided navigation, offering comprehensive navigation data for diverse maritime applications. The system ensures reliable performance even in demanding sea conditions.

Applications:

Maritime vessels
Ship platforms requiring precise navigation

Key Features and Capabilities:

Real-time navigation computation for accurate vessel positioning
Inertial, GNSS-assisted, and velocity-aided operation modes
Reliable navigation for demanding maritime environments
Accurate heading, roll, pitch, speed, and position information

Keywords: Maritime FOG INS, Merak-M1 INS, RLG gyroscope navigation, quartz accelerometer INS, strapdown marine INS, real-time navigation system, high-precision marine INS

Series		Maritime Inertial Navigation System(INS-M)
Type		Merak-M1
Accelerometer	Months Bias Repeatability(1σ)	≤30μg
Accelerometer	Months Scale Factor Accuracy(1σ)	≤30ppm
Gyro	Bias Repeatability(1σ)	≤0.005°/hr
	Scale Factor Accuracy(1σ)	≤20ppm
	Random walk(1σ)	≤0.002°/√hr
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Speed accuracy/Pure inertia	≤1.2kn,RMS
	Speed accuracy/GNSS Combination	≤0.4kn,RMS
	Startup time	≤10 sec
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time		≤15min
Position accuracy	Pure inertia	≤1nm/1h,CEP
	INS/DVL Combination	≤0.3%D,RMS
	INS/GNSS Combination	better than GNSS
Heading Accuracy	Pure inertia	≤0.05°sec(L),RMS
Heading Accuracy	INS/GNSS Combination	≤0.02°,RMS
Pitch & Roll Accuracy	Pure inertia	≤0.02°,RMS
Pitch & Roll Accuracy	INS/GNSS Combination	≤0.01°,RMS
Characteristics	Power consumption	＜18W
	Dimensions(Lmm×Wmm×Hmm)	161×153×123mm
	Weight	3.5kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞20000 hours
