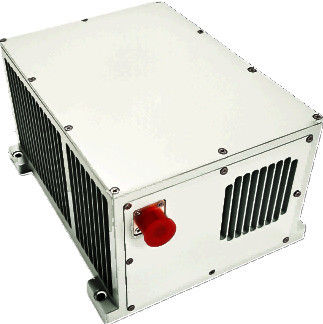

Dubhe-M1 RS422 Strapdown RLG Submarine Inertial Navigation System | GNSS-Aided Maritime INS

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	100 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Dubhe-M1

Alignment Time:

≤15min

Position Accuracy/Pure Inertia:

≤1nm/1h,CEP

Position Accuracy/INS/DVL Combination:

≤0.3%D,RMS

Position Accuracy/INS/GNSS Combination:

Better Than GNSS

Speed Accuracy/Pure Inertia:

≤1.5kn,RMS

Speed Accuracy/GNSS Combination:

≤0.4kn,RMS

Heading Accuracy/Pure Inertia:

≤0.05°sec(L),RMS

Heading Accuracy/INS/GNSS Combination:

≤0.02°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.01°,RMS

Dimensions(Lmm×Wmm×Hmm):

195×160×108mm

Weight:

＜3.9kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Product Description

The Dubhe-M1 Submarine Inertial Navigation System (INS) is designed to meet the demands of maritime and submarine navigation. Integrating precision RLG/FOG gyroscopes with quartz accelerometers in a robust strapdown sensor assembly, the system provides high-accuracy, real-time navigation data.

Equipped with a high-speed processing unit, the Dubhe-M1 supports multiple operation modes, including pure inertial navigation and GNSS/velocity hybrid navigation, ensuring continuous and reliable positioning information for a variety of marine platforms.

Applications:

Submarines and underwater vessels
Maritime vessels requiring precise navigation

Key Features and Capabilities:

Real-time strapdown computation for accurate navigation
Pure inertial and GNSS/velocity hybrid operation modes
Reliable continuous positioning for diverse marine platforms
High-precision heading, roll, pitch, speed, and position information

Keywords: Submarine INS, RS422 strapdown INS, maritime RLG INS, GNSS-aided marine navigation, optical strapdown INS, high-accuracy marine INS, FOG gyroscope navigation

Series		Maritime Inertial Navigation System(INS-M)
Type		Dubhe-M1
Accelerometer	Months Bias Repeatability(1σ)	≤30μg
Accelerometer	Months Scale Factor Accuracy(1σ)	≤30ppm
Gyro	Bias Repeatability(1σ)	≤0.01°/hr
	Scale Factor Accuracy(1σ)	≤10ppm
	Random walk(1σ)	≤0.003°/√hr
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Speed accuracy/Pure inertia	≤1.5kn,RMS
	Speed accuracy/GNSS Combination	≤0.4kn,RMS
	Startup time	≤10sec
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time		≤15min
Position accuracy	Pure inertia	≤1nm/1h,CEP
	INS/DVL Combination	≤0.3%D,RMS
	INS/GNSS Combination	better than GNSS
Heading Accuracy	Pure inertia	≤0.05°sec(L),RMS
Heading Accuracy	Inertia/GNSS Combination	≤0.02°,RMS
Pitch & Roll Accuracy	Pure inertia	≤0.02°,RMS
Pitch & Roll Accuracy	Inertia/GNSS Combination	≤0.01°,RMS
Characteristics	Power consumption	＜20W
	Dimensions(Lmm×Wmm×Hmm)	195×160×108mm
	Weight	＜3.9kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞20000 hours

Products

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	100 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Dubhe-M1

Alignment Time:

≤15min

Position Accuracy/Pure Inertia:

≤1nm/1h,CEP

Position Accuracy/INS/DVL Combination:

≤0.3%D,RMS

Position Accuracy/INS/GNSS Combination:

Better Than GNSS

Speed Accuracy/Pure Inertia:

≤1.5kn,RMS

Speed Accuracy/GNSS Combination:

≤0.4kn,RMS

Heading Accuracy/Pure Inertia:

≤0.05°sec(L),RMS

Heading Accuracy/INS/GNSS Combination:

≤0.02°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.01°,RMS

Dimensions(Lmm×Wmm×Hmm):

195×160×108mm

Weight:

＜3.9kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Minimum Order Quantity:

1 set

Price:

$1000-$100000

Delivery Time:

30 work days

Payment Terms:

Supply Ability:

100 set per year

Product Description

Applications:

Submarines and underwater vessels
Maritime vessels requiring precise navigation

Key Features and Capabilities:

Real-time strapdown computation for accurate navigation
Pure inertial and GNSS/velocity hybrid operation modes
Reliable continuous positioning for diverse marine platforms
High-precision heading, roll, pitch, speed, and position information

Keywords: Submarine INS, RS422 strapdown INS, maritime RLG INS, GNSS-aided marine navigation, optical strapdown INS, high-accuracy marine INS, FOG gyroscope navigation

Series		Maritime Inertial Navigation System(INS-M)
Type		Dubhe-M1
Accelerometer	Months Bias Repeatability(1σ)	≤30μg
Accelerometer	Months Scale Factor Accuracy(1σ)	≤30ppm
Gyro	Bias Repeatability(1σ)	≤0.01°/hr
	Scale Factor Accuracy(1σ)	≤10ppm
	Random walk(1σ)	≤0.003°/√hr
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Speed accuracy/Pure inertia	≤1.5kn,RMS
	Speed accuracy/GNSS Combination	≤0.4kn,RMS
	Startup time	≤10sec
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time		≤15min
Position accuracy	Pure inertia	≤1nm/1h,CEP
	INS/DVL Combination	≤0.3%D,RMS
	INS/GNSS Combination	better than GNSS
Heading Accuracy	Pure inertia	≤0.05°sec(L),RMS
Heading Accuracy	Inertia/GNSS Combination	≤0.02°,RMS
Pitch & Roll Accuracy	Pure inertia	≤0.02°,RMS
Pitch & Roll Accuracy	Inertia/GNSS Combination	≤0.01°,RMS
Characteristics	Power consumption	＜20W
	Dimensions(Lmm×Wmm×Hmm)	195×160×108mm
	Weight	＜3.9kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞20000 hours
