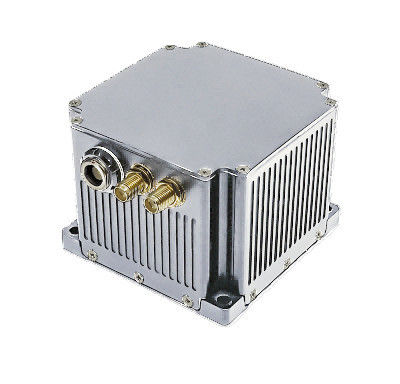

Merak-H01 Gyro AHRS System | High-Precision Attitude and Heading Reference Unit

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Merak-H01

Alignment Time:

＜10min

Heading Accuracy/Pure Inertia:

≤1°secL+0.2°/1h,RMS

Heading Accuracy/Single-antenna GNSS Combination:

≤0.5°,RMS

Heading Accuracy/Dual-antenna GNSS Combination:

≤0.1°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.15°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.1°,RMS

Dimensions:

70×70×53mm

Weight:

＜0.5kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Product Description

The Merak-H01 Attitude and Heading Reference System (AHRS) is a high-precision strapdown inertial navigation unit combining optical gyroscopes (FOG/RLG) and accelerometers (quartz/MEMS). The system provides reliable 3D orientation and heading data through GNSS-assisted or pure inertial navigation modes, making it suitable for a wide range of applications.

Applications:

Defense and military platforms
Robotics and automated systems
Vehicle navigation
Marine and maritime systems
Precision industrial equipment

Operational Advantages:

Uninterrupted performance without GNSS availability
Flexible data output options for processed and raw sensor data
Global deployment capability across all geographic regions
High-reliability design for continuous operation

Keywords: Merak-H01 AHRS, high-precision AHRS system, gyro attitude and heading reference, FOG/RLG inertial navigation, strapdown AHRS unit, GNSS-assisted AHRS, 3D orientation navigation system, military and industrial AHRS

Series			Attitude and Heading Reference Systems(AHRS)
Type			Merak-H01
Accelerometer	Months Bias Repeatability(1σ)		≤500μg
	Months Scale Factor Accuracy(1σ)		≤500ppm
Gyro	Bias Repeatability(1σ)		≤0.1°/hr
	Scale Factor Accuracy(1σ)		≤300ppm
	Random walk(1σ)		≤0.03°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞40g
	Angular Attitude		Any Orientation
	Startup time		10 sec
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			＜10min
AHRS Applications Performance	Heading Accuracy	Pure inertia	≤1.0°secL+0.2°/h,RMS
		INS/Single-antenna GNSS combination	≤0.5°,RMS
		INS/Dual-antenna GNSS combination	≤0.1°,RMS
	Pitch & Roll Accuracy	Pure inertia	≤0.15°,RMS
		INS/GNSS combination	≤0.1°,RMS
Characteristics	Power consumption		＜10W
	Dimensions		70×70×53mm
	Weight		＜500g
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
