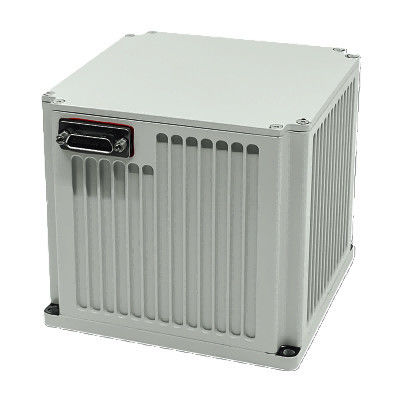

Merak-H1 Quartz Strapdown AHRS System | GNSS-Aided Standalone Inertial Navigation

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Merak-H1

Alignment Time:

＜10min

Heading Accuracy/Pure Inertia:

≤0.05°secL+0.01°/1h,RMS

Heading Accuracy/Single-antenna GNSS Combination:

≤0.02°,RMS

Heading Accuracy/Dual-antenna GNSS Combination:

≤0.02°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.01°,RMS

Dimensions:

161×153×123mm

Weight:

<3.5kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Product Description

The Merak-H1 Attitude and Heading Reference System (AHRS) is a high-precision strapdown inertial navigation system designed for a wide range of applications. Utilizing fiber optic gyroscopes (FOG) or ring laser gyroscopes (RLG) coupled with quartz or MEMS accelerometers, the system executes advanced navigation algorithms to provide real-time attitude and heading information.

The Merak-H1 supports multiple operational modes, including GNSS-aided navigation and standalone inertial navigation, delivering accurate and reliable performance in both GNSS-available and GNSS-denied environments.

Applications:

Military platforms: radar, optical, acoustic systems, and artillery
Robotics and automated vehicles
Land and sea vehicles
Submersibles
Industrial equipment

Key Features and Capabilities:

Autonomous operation in GNSS-denied environments
Output of processed navigation data and raw inertial measurements
Worldwide deployment capability for diverse environments
High-reliability design for continuous operation

Keywords: AHRS system, Merak-H1 AHRS, strapdown inertial navigation, GNSS-aided AHRS, FOG gyroscope AHRS, RLG gyroscope AHRS, high-precision attitude and heading system, standalone inertial navigation system

Series			Attitude and Heading Reference Systems(AHRS)
Type			Merak-H1
Accelerometer	Months Bias Repeatability(1σ)		≤30μg
	Months Scale Factor Accuracy(1σ)		≤30ppm
Gyro	Bias Repeatability(1σ)		≤0.005°/hr,1σ
	Scale Factor Accuracy(1σ)		≤20ppm
	Random walk(1σ)		≤0.002°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞25g
	Angular Attitude		Any Orientation
	Startup time		10 sec
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			＜10min
AHRS Applications Performance	Heading Accuracy	Pure inertia	≤0.05°secL+0.01°/h,RMS
		Single-antenna GNSS combination	≤0.02°,RMS
		Dual-antenna GNSS combination	≤0.02°,RMS
	Pitch & Roll Accuracy	Pure inertia	≤0.02°,RMS
		INS/GNSS combination	≤0.01°,RMS
Characteristics	Power consumption		＜15W
	Dimensions		161×153×123mm
	Weight		<3.5kg
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
