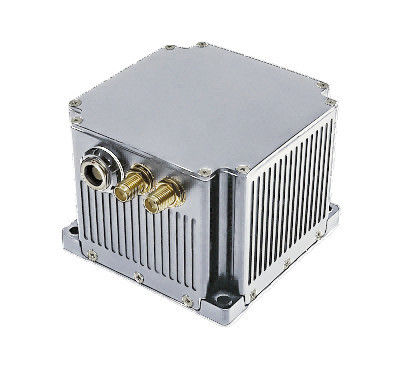

Merak-H02 Tactical AHRS Unit | Jamming-Resistant Attitude and Heading Reference System

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

Merak-H02

Alignment Time:

＜10min

Heading Accuracy/Pure Inertia:

≤0.5°secL+0.1°/1h,RMS

Heading Accuracy/Single-antenna GNSS Combination:

≤0.3°,RMS

Heading Accuracy/Dual-antenna GNSS Combination:

≤0.1°,RMS

Pitch & Roll Accuracy/Pure Inertia:

≤0.1°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination:

≤0.03°,RMS

Dimensions:

100×100×90mm

Weight:

＜1.35kg

Temperature:

-40℃~60℃

Input Voltage:

DC24V(±25%)

Product Description

The Merak-H02 Tactical Attitude and Heading Reference System (AHRS) integrates high-performance FOG/RLG gyroscopes with precision quartz or MEMS accelerometers in a ruggedized strapdown configuration. Designed for mission-critical applications, the system provides continuous attitude and heading reference even during GNSS outages, delivering both processed navigation solutions and raw sensor data.

Deployment Platforms:

Combat systems: fire control, EO/IR sensors
Autonomous vehicles: UGV, USV, UUV
Naval and maritime systems
Specialized industrial equipment

Battle-Proven Features:

Jamming-resistant operation for GNSS-denied environments
Dual data output modes: processed and raw inertial data
Global operability across diverse environments
MIL-SPEC reliability for mission-critical performance

Keywords: Tactical AHRS system, Merak-H02 AHRS, jamming-resistant AHRS, FOG gyroscope AHRS, RLG gyroscope AHRS, strapdown inertial navigation, military-grade AHRS, autonomous vehicle AHRS

Series			Attitude and Heading Reference Systems(AHRS)
Type			Merak-H02
02Accelerometer	Months Bias Repeatability(1σ)		≤100μg
	Months Scale Factor Accuracy(1σ)		≤100ppm
Gyro	Bias Repeatability(1σ)		≤0.03°/hr,1σ
	Scale Factor Accuracy(1σ)		≤100ppm
	Random walk(1σ)		≤0.005°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞25g
	Angular Attitude		Any Orientation
	Startup time		10 sec
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			＜10min
AHRS Applications Performance	Heading Accuracy	Pure inertia	≤0.5°secL+0.1°/h,RMS
		Single-antenna GNSS combination	≤0.3°,RMS
		Dual-antenna GNSS combination	≤0.1°,RMS
	Pitch & Roll Accuracy	Pure inertia	≤0.1°,RMS
		INS/GNSS combination	≤0.03°,RMS
Characteristics	Power consumption		＜15W
	Dimensions		100×100×90mm
	Weight		＜1.35kg
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
