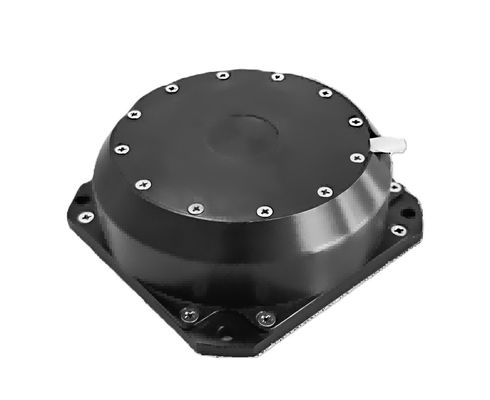

Merak-120S Single-Axis Quartz Fiber Optic Gyroscope | High-Precision FOG Sensor

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	5000 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

FOG（Merak-120S）

Performance\Dynamic Range:

≥±400°/s

Performance\Bias In-run:

＜1°/h

Performance\Accuracy（100sec）:

0.003°/h~0.001°/h

Performance\ARW（Angular Random Walk）:

＜0.0006°/√hr,1σ

Performance\Vibration Screening:

20~500Hz，3.2g

Performance\Bandwidth:

＞200Hz

Electrical Interface\Turn On Time:

Electrical Interface\Output Signal Format:

RS-422

Electrical Interface\Built In Self-test:

Electrical Interface\Output Signal Update Rate:

500Hz~4000Hz

Electrical Interface\Output Signal Baud Rate:

115200bps~921600bps

Electrical Interface\Operating Temperature:

- 40℃ ~ + 70℃

Electrical Interface\Storage Temperature:

- 55℃ ~ + 85℃

Physical Specifications\Power Supply:

Physical Specifications\Connector (9 Pins):

J30JZ/XN9TJCAL01

Physical Specifications\Power Consumption:

Physical Specifications\MTBF (per MIL-HDBK-217-F):

＞150000hr

Physical Specifications\Weight:

≤900g

Physical Specifications\Dimensions:

120mm×120mm×38mm

Product Description

The Merak-120S Fiber Optic Gyroscope (FOG) is a high-precision single-axis angular rate sensor using digital Sagnac interferometry. Designed for mission-critical applications, it delivers real-time angular velocity data exceeding 4 kHz in a rugged, compact package.

Applications:

Missile guidance systems
Torpedo navigation
Weapon stabilization platforms
Flight control systems

Operational Advantages:

All-solid-state design with no mechanical wear components
Immediate mission readiness with instant startup
Clean digital signal output for high accuracy
Exceptional reliability in harsh and demanding environments

Series		FOG Series
Type		Merak-120S
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(100sec)	0.003°/h~0.001°/h
	ARW(Angular random walk)	＜0.0006°/√hr,1σ
	Vibration screening	20~500Hz,3.2g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	30s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30JZ/XN9TJCAL01
	Power consumption	≤3w
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤900g
	Dimensions	120mm×120mm×38mm
