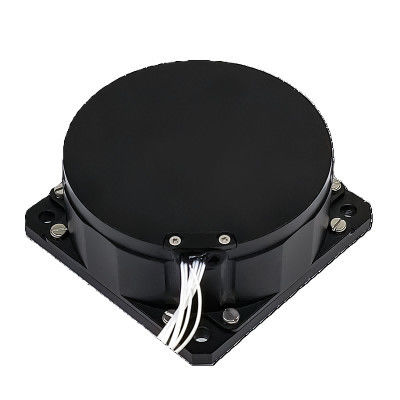

Merak-70S Single-Axis Fiber Optic Gyroscope | High-Bandwidth Digital FOG Sensor

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	5000 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

FOG（Merak-70S）

Performance\Dynamic Range:

≥±400°/s

Performance\Bias In-run:

＜1°/h

Performance\Accuracy（10sec）:

0.05°/h~0.03°/h

Performance\ARW（Angular Random Walk）:

＜0.005°/√hr,1σ

Performance\Vibration Screening:

20~2000Hz，6.06g

Performance\Bandwidth:

＞200Hz

Electrical Interface\Turn On Time:

Electrical Interface\Output Signal Format:

RS-422

Electrical Interface\Built In Self-test:

Electrical Interface\Output Signal Update Rate:

500Hz~4000Hz

Electrical Interface\Output Signal Baud Rate:

115200bps~921600bps

Electrical Interface\Operating Temperature:

- 40℃ ~ + 70℃

Electrical Interface\Storage Temperature:

- 55℃ ~ + 85℃

Physical Specifications\Power Supply:

Physical Specifications\Connector (9 Pins):

J30J-15TJL

Physical Specifications\Power Consumption:

Physical Specifications\MTBF (per MIL-HDBK-217-F):

＞150000hr

Physical Specifications\Weight:

≤300g

Physical Specifications\Dimensions:

70mm×70mm×30mm

Product Description

The Merak-70S Fiber Optic Gyroscope (FOG) is a high-performance single-axis angular rate sensor utilizing advanced Sagnac effect detection. Delivering high-bandwidth rotational measurements exceeding 4 kHz, it features shared-optics multi-axis designs and industrial-standard interfaces, making it ideal for platform stabilization, motion control, robotics, and autonomous systems.

Key Benefits:

Customizable form factors for flexible integration
All-solid-state reliability for long-term performance
Plug-and-play operation for instant deployment
Optimized noise and power efficiency
Reduced lifecycle costs for cost-effective operation

Series		FOG Series
Type		Merak-70S
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(10sec)	0.05°/h~0.03°/h
	ARW(Angular random walk)	＜0.005°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤300g
	Dimensions	70mm×70mm×30mm

Products

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	5000 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

FOG（Merak-70S）

Performance\Dynamic Range:

≥±400°/s

Performance\Bias In-run:

＜1°/h

Performance\Accuracy（10sec）:

0.05°/h~0.03°/h

Performance\ARW（Angular Random Walk）:

＜0.005°/√hr,1σ

Performance\Vibration Screening:

20~2000Hz，6.06g

Performance\Bandwidth:

＞200Hz

Electrical Interface\Turn On Time:

Electrical Interface\Output Signal Format:

RS-422

Electrical Interface\Built In Self-test:

Electrical Interface\Output Signal Update Rate:

500Hz~4000Hz

Electrical Interface\Output Signal Baud Rate:

115200bps~921600bps

Electrical Interface\Operating Temperature:

- 40℃ ~ + 70℃

Electrical Interface\Storage Temperature:

- 55℃ ~ + 85℃

Physical Specifications\Power Supply:

Physical Specifications\Connector (9 Pins):

J30J-15TJL

Physical Specifications\Power Consumption:

Physical Specifications\MTBF (per MIL-HDBK-217-F):

＞150000hr

Physical Specifications\Weight:

≤300g

Physical Specifications\Dimensions:

70mm×70mm×30mm

Minimum Order Quantity:

1 set

Price:

$1000-$100000

Delivery Time:

30 work days

Payment Terms:

Supply Ability:

5000 set per year

Product Description

Key Benefits:

Customizable form factors for flexible integration
All-solid-state reliability for long-term performance
Plug-and-play operation for instant deployment
Optimized noise and power efficiency
Reduced lifecycle costs for cost-effective operation

Series		FOG Series
Type		Merak-70S
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(10sec)	0.05°/h~0.03°/h
	ARW(Angular random walk)	＜0.005°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤300g
	Dimensions	70mm×70mm×30mm
