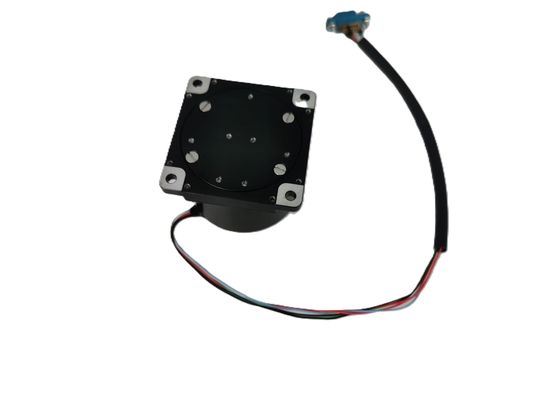

MERAK-50S Single-Axis Fiber Optic Gyroscope | Digital FOG Gyro INS Inertial Gyroscope

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	5000 set per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Wuhan Deep Pilot Technology Co.,Ltd.

Model Number

FOG（Merak-50S）

Performance\Dynamic Range:

≥±400°/s

Performance\Bias In-run:

＜2°/h

Performance\Accuracy（10sec）:

0.5°/h~0.2°/h

Performance\ARW（Angular Random Walk）:

＜0.03°/√hr,1σ

Performance\Vibration Screening:

20~2000Hz，6.06g

Performance\Bandwidth:

＞200Hz

Electrical Interface\Turn On Time:

Electrical Interface\Output Signal Format:

RS-422

Electrical Interface\Built In Self-test:

Electrical Interface\Output Signal Update Rate:

500Hz~4000Hz

Electrical Interface\Output Signal Baud Rate:

115200bps~921600bps

Electrical Interface\Operating Temperature:

- 40℃ ~ + 70℃

Electrical Interface\Storage Temperature:

- 55℃ ~ + 85℃

Physical Specifications\Power Supply:

Physical Specifications\Connector (9 Pins):

J30J-15TJL

Physical Specifications\Power Consumption:

Physical Specifications\MTBF (per MIL-HDBK-217-F):

＞150000hr

Physical Specifications\Weight:

≤160g

Physical Specifications\Dimensions:

50mm×50mm×30mm

Product Description

The MERAK-50S Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac optical effect. Using advanced all-digital closed-loop detection technology, it delivers real-time angular velocity output at frequencies above 4 kHz through a standard serial interface. The MERAK-50S series is available in single-axis, dual-axis, and three-axis configurations, with multi-axis models featuring a shared light source and processing circuitry for synchronous orthogonal axis measurement.

Applications:

Guidance and navigation systems
Attitude control platforms
Torpedoes and tactical missiles
Industrial stabilization equipment

Key Features:

Compact, lightweight modular design for flexible integration
All-solid-state construction ensuring durability and reliability
Instant startup with fully digital interface
Low noise, low power, and cost-effective performance
High reliability and long operational lifespan

Series		FOG Series
Type		Merak-50S
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜2°/h
	Accuracy(10sec)	0.5°/h~0.2°/h
	ARW(Angular random walk)	＜0.03°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤160g
	Dimensions	50mm×50mm×30mm
